Jetson Orin Nano
Field-Prototyping Kit
Fully configured for vision applications, pre-loaded with 20+ applications ready to run. Open source software, hardware ready out of the box.
What It Includes
Start building on the Jetson Orin Nano immediately instead of the 100+ actions required to get it running optimally.
Jetson Orin Nano Super Developer Kit
Complete development board as shipped from NVIDIA with power adapters.
Learn MoreBootable NVMe SSD
Pre-partitioned with field kit base image including prebuilt CUDA modules, instantly bootable file system, applications, and LLM models preinstalled
Learn MoreIMX 219 Camera
8MP camera module configured and connected to the device, ready for computer vision applications
Learn More3D Printed Case
Custom-designed enclosure with integrated camera mount for protection and portability
Learn More7" LCD Screen (Optional Addon)
Portable display with DisplayPort to HDMI adapter - available as optional addon
Learn MoreKeyboard and Mouse Combo (Optional Addon)
Wireless input devices - available as optional addon for full workstation setup
Learn MoreIntegrated With
Pre-configured and tested with industry-leading edge AI frameworks
Technical Specifications

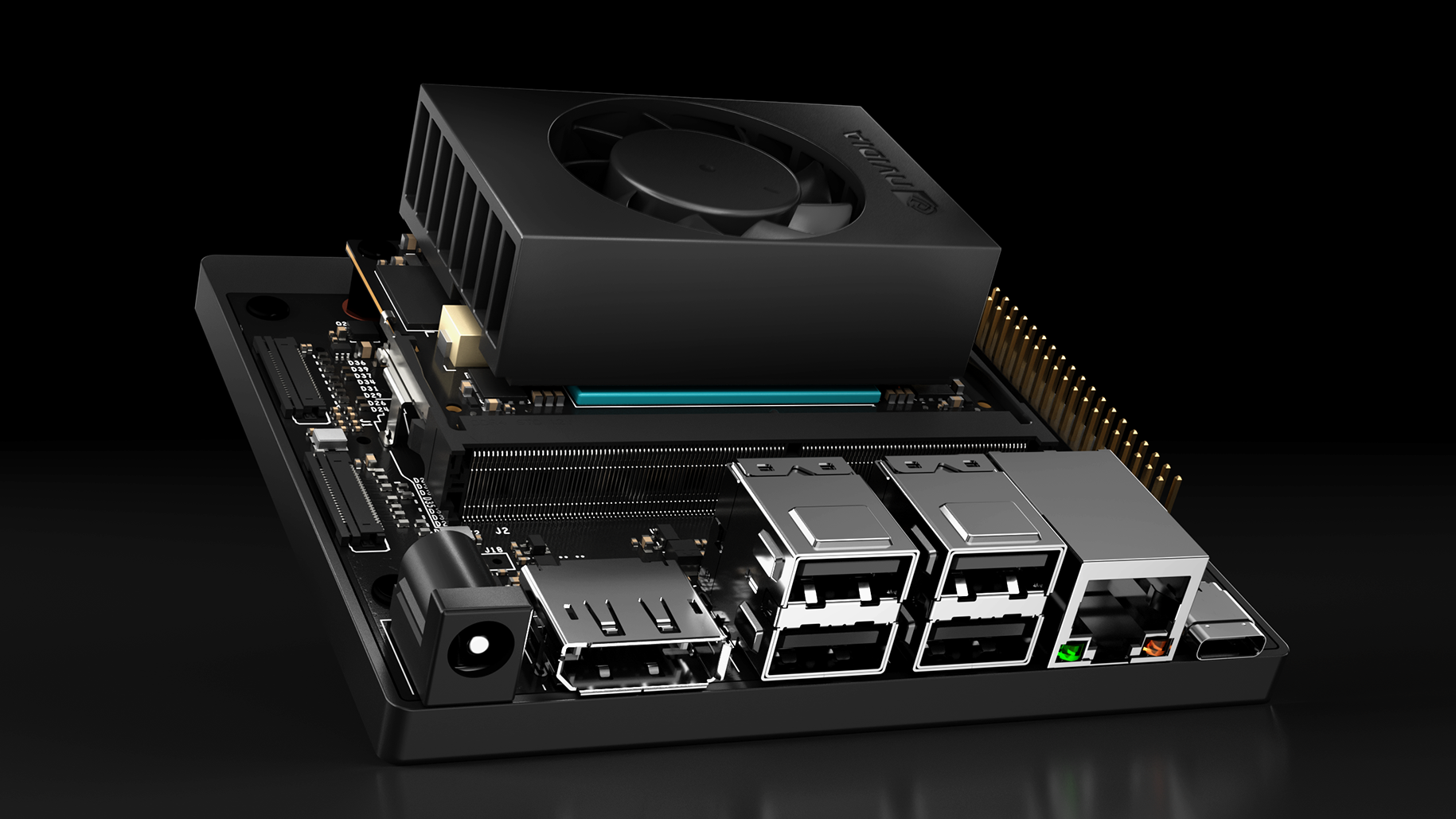

Jetson Orin Nano Development Kit
Jetson Orin Nano Development Kit
At the heart of the kit lies the NVIDIA Jetson Orin Nano Super Developer Kit, delivering 100 TOPS of AI performance in a compact form factor.
Core Specifications
- AI Performance100 TOPS (INT8)
- GPU1024-core Ampere
- CPU6-core Arm Cortex-A78AE
- Memory8GB LPDDR5
Field Kit Base Image (NVMe SSD)
Field Kit Base Image (NVMe SSD)
Pre-configured bootable NVMe SSD with optimized system image that saves you 40-120 hours of development time. The entire OS and AI stack runs from high-speed storage, ensuring faster I/O and model loading.
Save 40-120 Hours
Skip the tedious setup, compilation, and configuration. Start building your AI applications immediately.
Prebuilt Optimized Frameworks
PyTorch, llama.cpp, and other AI frameworks compiled and optimized for Jetson Orin Nano architecture.
- CUDA-accelerated builds
- TensorRT optimizations
- Verified compatibility
System Configuration
Professionally configured boot partitions with optimized disk layout for maximum performance and reliability.
- 16GB swap partition
- Fast Boot Time
- NVMe speeds: 2400-4000 MB/s
Ready-to-Run Applications
Pre-installed applications for LLM inference and vision-language models (VLM). All applications tested and verified for production use.

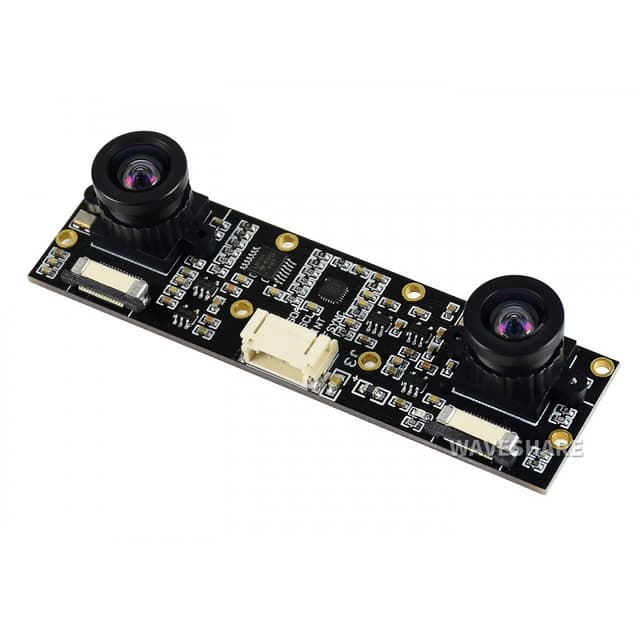

IMX 219 Camera Module
IMX 219 Camera Module
High-quality 8MP camera module with Sony IMX219 sensor, pre-configured and connected to the device. Ready for computer vision, object detection, and depth perception applications.
Camera Specifications
- SensorSony IMX219
- Resolution8MP (3280 × 2464)
- Field of View160° (with lens)
- InterfaceMIPI CSI-2
Software Support
Perfect For
Optional Workstation Addons
Optional Workstation Addons
Optional addons available for a complete standalone workstation experience. The kit includes everything needed to run AI workloads - LCD display and keyboard/mouse are optional for full desktop setup.
Keyboard & Mouse
- Wireless 2.4GHz connection
- Compact layout for portability
- Plug-and-play, no drivers needed
- Battery-powered, long life
7" LCD Screen
- 7-inch portable display
- DisplayPort to HDMI adapter included
- Perfect for field deployment
- Lightweight & portable
Complete Standalone System
The kit includes everything needed to run AI workloads. LCD display and keyboard/mouse are optional addons for a full workstation experience.

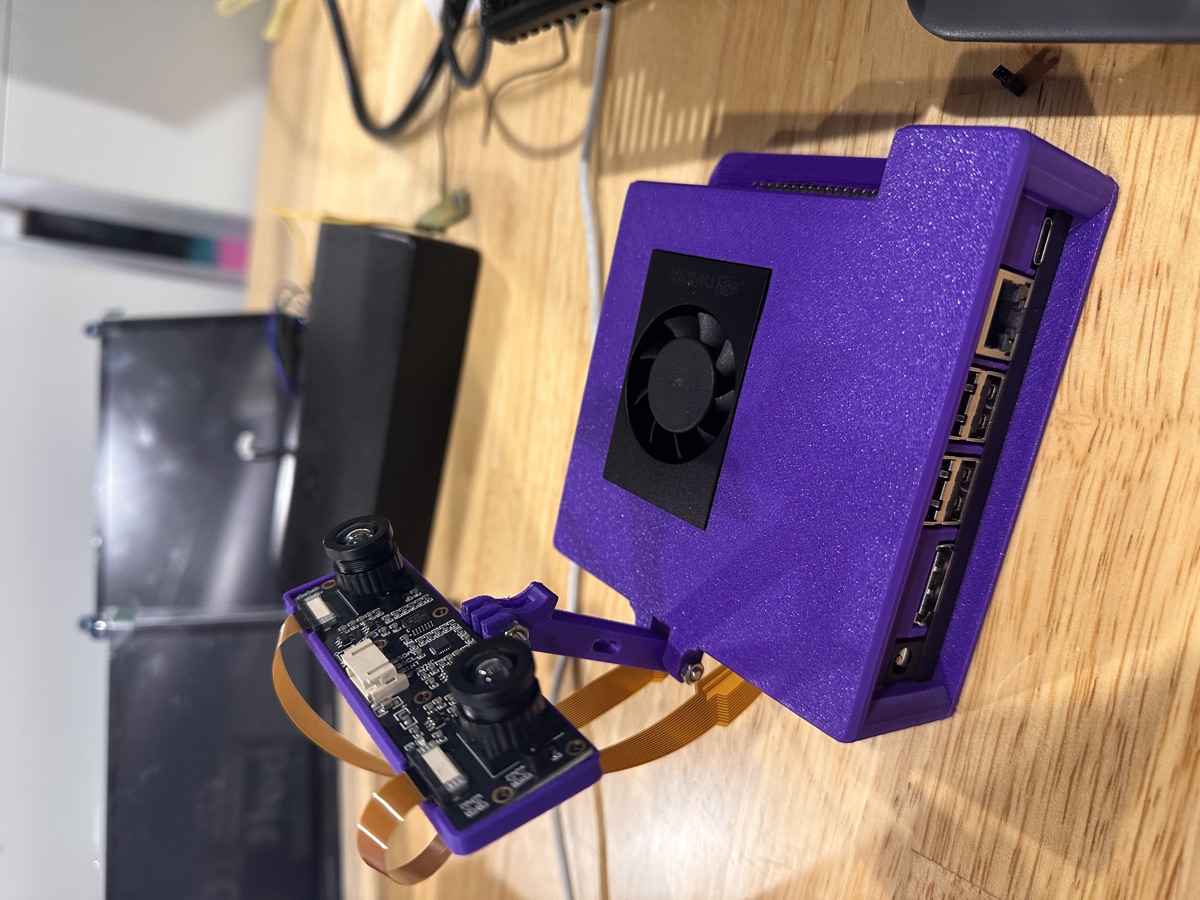

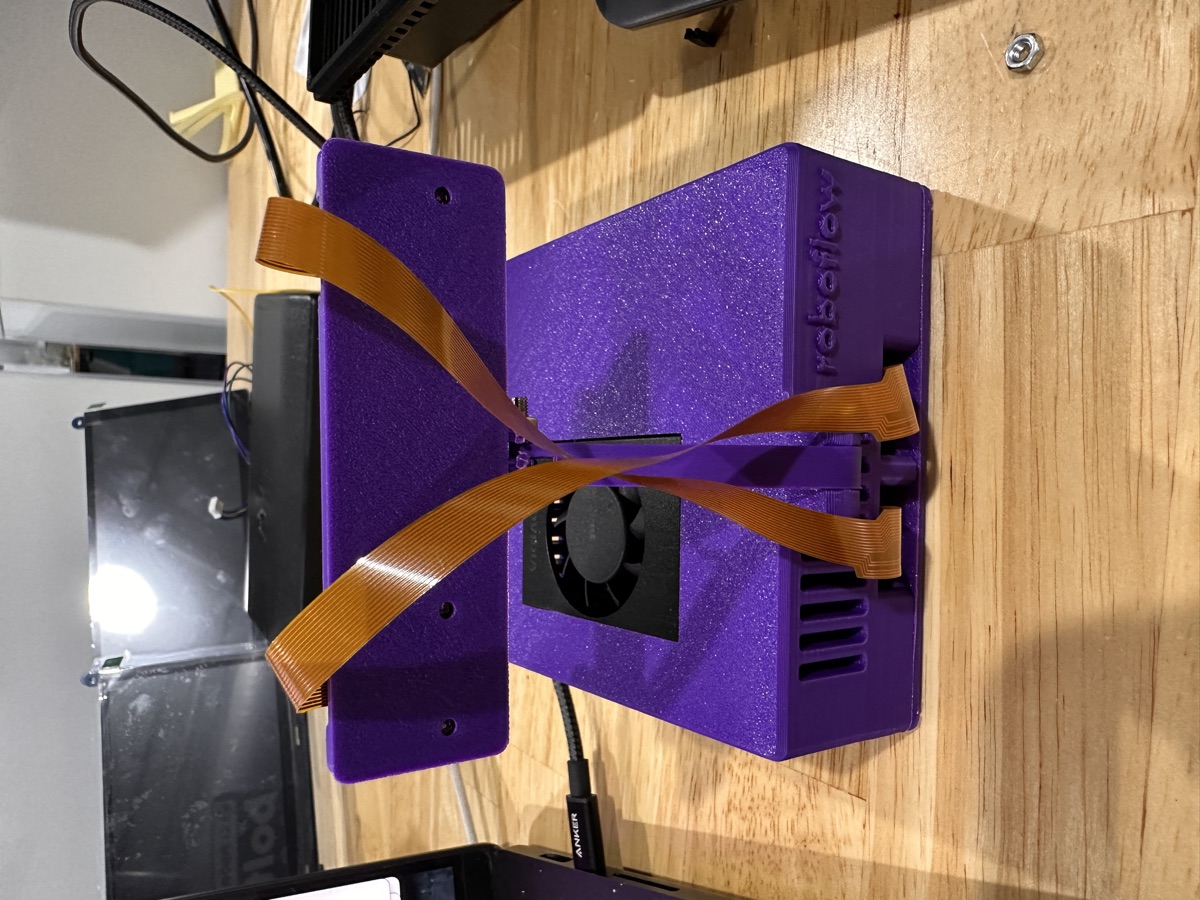

3D Printed Protective Case
3D Printed Protective Case
Custom-designed 3D printed enclosure with integrated camera mount. Provides protection, portability, and professional appearance for your field kit.
Durable Protection
Shields components from dust, impacts, and environmental hazards during transport and field use.
Integrated Camera Mount
Pre-installed camera bracket ensures optimal positioning and stability for vision applications.
Port Access
Strategic cutouts provide easy access to all USB, GPIO, and power connections.
Case Features
- Ventilation for passive cooling
- Stackable design for multiple units
- Mounting holes for fixtures
- Lightweight PLA/PETG material
- Tool-free assembly
- Professional aesthetic
Open Source Design
STL files and CAD models available on GitHub. Customize, modify, or reprint to fit your specific needs.
All specifications subject to change. Performance may vary based on configuration, workload, and environmental conditions. NVIDIA, Jetson, CUDA, and TensorRT are trademarks of NVIDIA Corporation.
